KV2 Audio EX 2.2

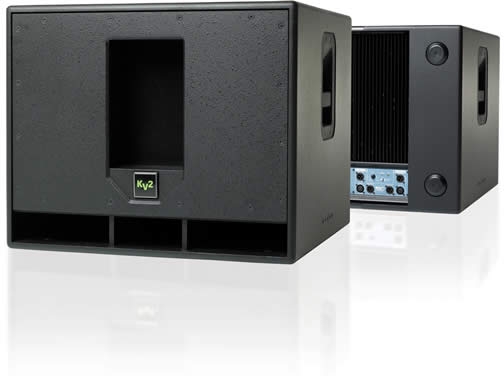

KV2 Audio EX2.2, 1000-Watt Dual 12“ aktiver Subwoofer The EX 2.2 is a double 12”, compact, active subwoofer system. On- board electronics include a stereo crossover with High Pass outputs and full overdrive protection. Featuring KV2 Audio’s switching amplifier technology, precision manufactured woofer designs and a high efficiency, twin chamber acoustic design, the EX 2.2 delivers tight, fast, controlled bass response at very high output levels from a small cabinet footprint.

Applications
 High quality fixed installations.
Portable PA Systems for AV speech and multimedia playback.
Small to medium sized live music applications.
Mobile DJ.
Stand alone subwoofer to supplement an existing passive or active system.




System Acoustic Perfomance
-3dB Response 45Hz - 125Hz
-10dB Response 40Hz - 125Hz
Max SPL Long-term 130dB
Max SPL Peak 133dB
Crossover Point 125Hz

Low Frequency Section
Acoustic Design Twin Asymmetrical loading
Woofer Size/ Voice Coil Diameter/ Design 12" / 3" / Inside outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type
